Led poster/Led Banner-LP-H Series
Click to enlarge

indoor/outdoor rental usage LED display–PD Series

TW VISION

Apple Shopping Event

Hurry and get discounts up to 20% Read more

MOQ：

MOQ：

  • Pixel Pitch:

Indoor: P1.9, P2.6, P2.9, P3.9

Outdoor: P2.6, P2.9, P3.9

  • Usage:

Indoor and outdoor rental and live show usage

  • Function:

Whole set Led cabinets can work together, Support misalignment splicing

Straight led wall: 500x500mm and 500x1000mm

Curve led wall: Curve -10°~15°

Flexible led wall: Flexible led wall support -22.5°~+22.5°

45° led wall: 45°beveled cabinet

PRODUCT TAG: STAGE LED WALL/RENTAL LED WALL/CONCERT LED WALL CATEGORY: ,

INQUIRY：

WHATSAPP Contact
Email Contact
Add to compare
Product Care

  • Pixel Pitch:

Indoor: P1.9, P2.6, P2.9, P3.9

Outdoor: P2.6, P2.9, P3.9

  • Usage:

Indoor and outdoor rental and live show usage

  • Function:

Whole set Led cabinets can work together, Support misalignment splicing

Straight led wall: 500x500mm and 500x1000mm

Curve led wall: Curve -10°~15°

Flexible led wall: Flexible led wall support -22.5°~+22.5°

45° led wall: 45°beveled cabinet

Production and Warranty

Production time: 15 days
Warranty: 2 years

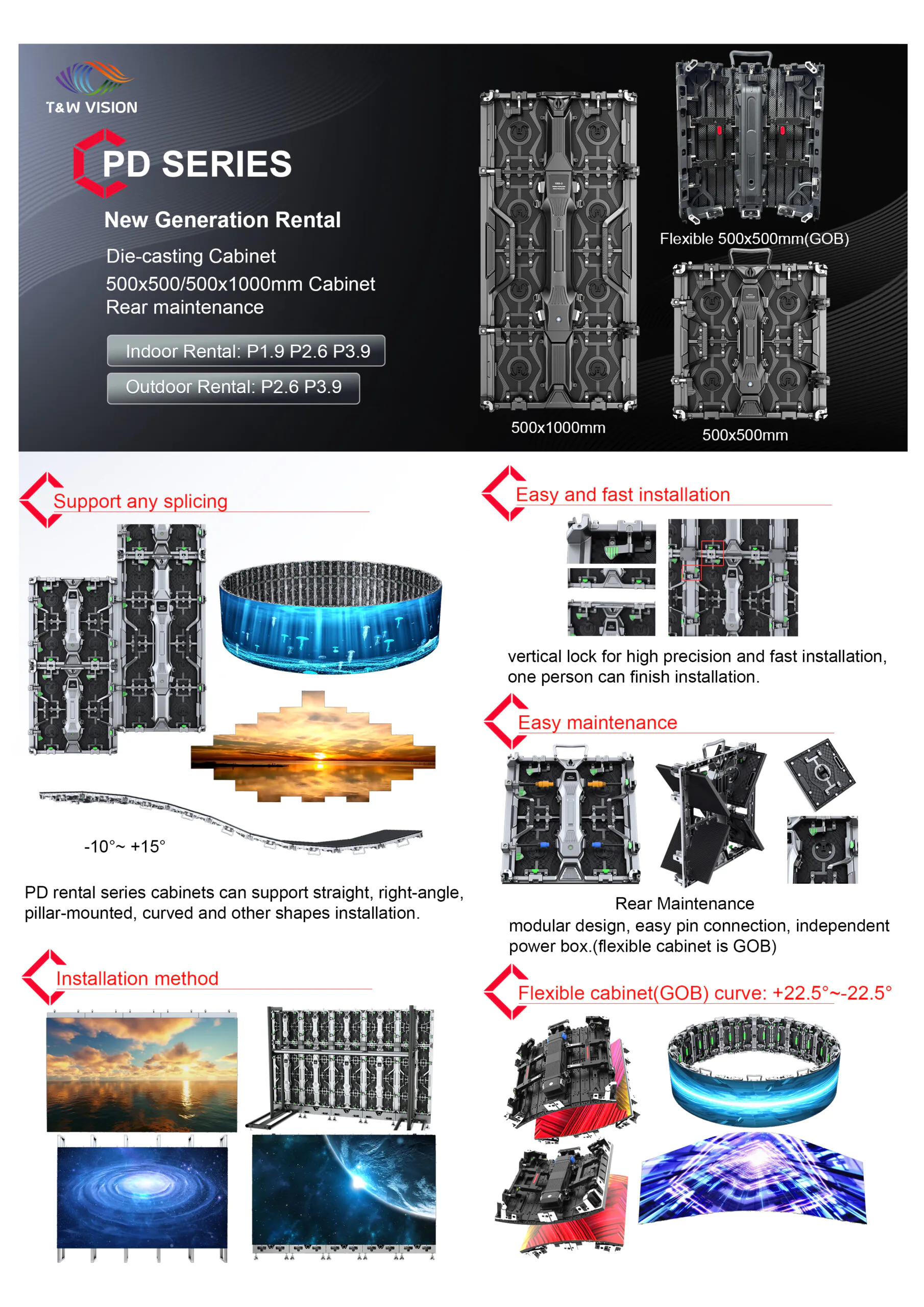

Features and advantages of our indoor/outdoor rental led display PD series

Functions of our indoor/outdoor rental led display

  • Indoor: P1.9, P2.6, P2.9, P3.9 Outdoor: P2.6, P2.9, P3.9
  • Curved: 0, ±5°, ±7.5°,±10°, +12.5°, +15°
  • Flexible Curved: +22.5° ~ -22.5°
  • Modules magnets design, rear maintenance
  • Independent power box design
  • Cabinets can support straight, right-angle, pillar-mounted, curved and other shapes installation
  • Cube 90° corner screen
Indoor&outdoor rental cabinet flexible cabinet-refresh frequency

3840Hz

Indoor&outdoor rental cabinet flexible cabinet-brightness

800/4500nits

Indoor&outdoor rental cabinet flexible cabinet-weight

6.8/13.3kg

Indoor&outdoor rental cabinet flexible cabinet-Strong compatibility

Strong Compatibility

Indoor&outdoor rental cabinet flexible cabinet-rear maintenance

Rear Maintenance

Indoor&outdoor rental cabinet flexible cabinet-Die Cast Aluminum

Die Cast Aluminum

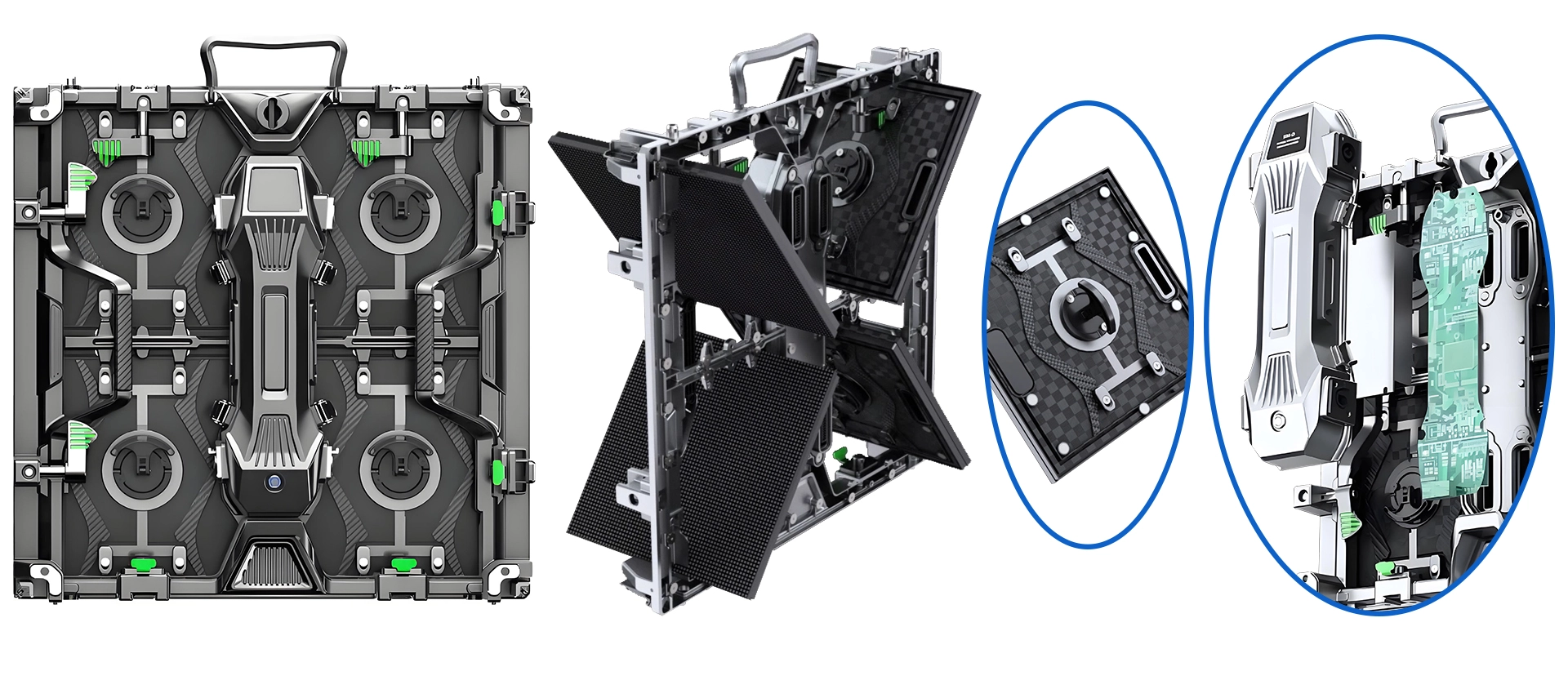

Rear Maintenance

Our PD series cabinet features a modular design and an independent power box. Support fast replacement.

Indoor&outdoor rental cabinet rear maintenance

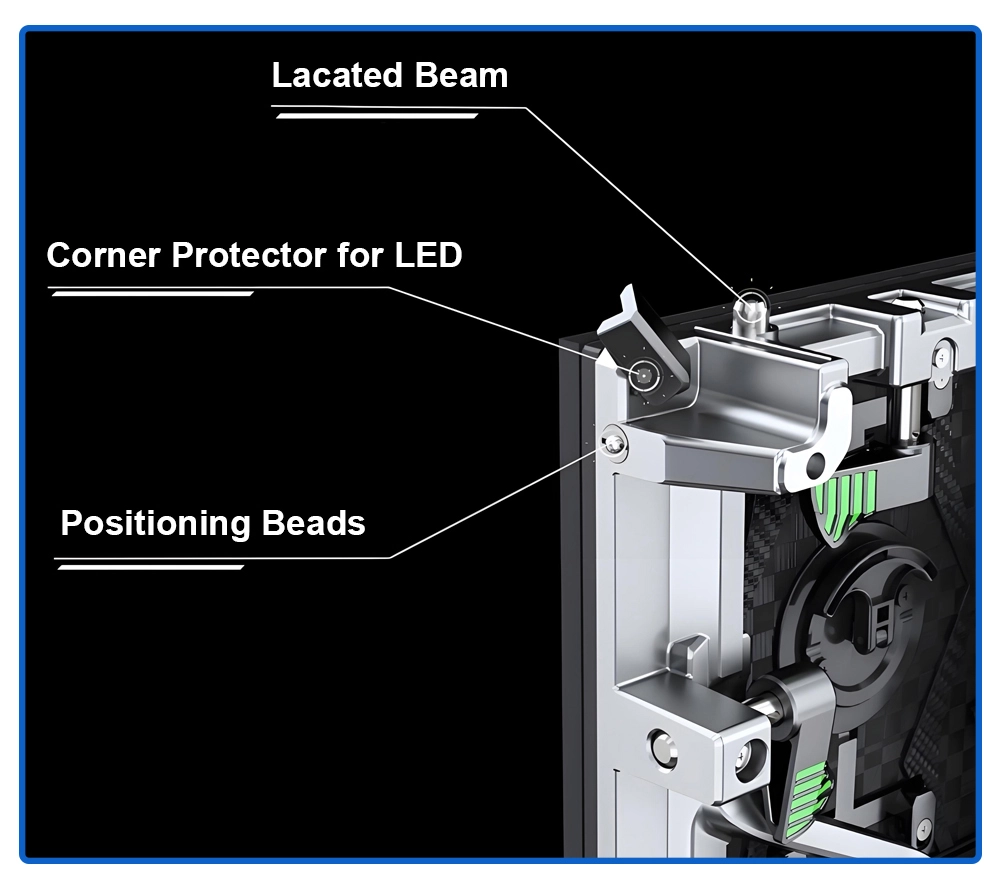

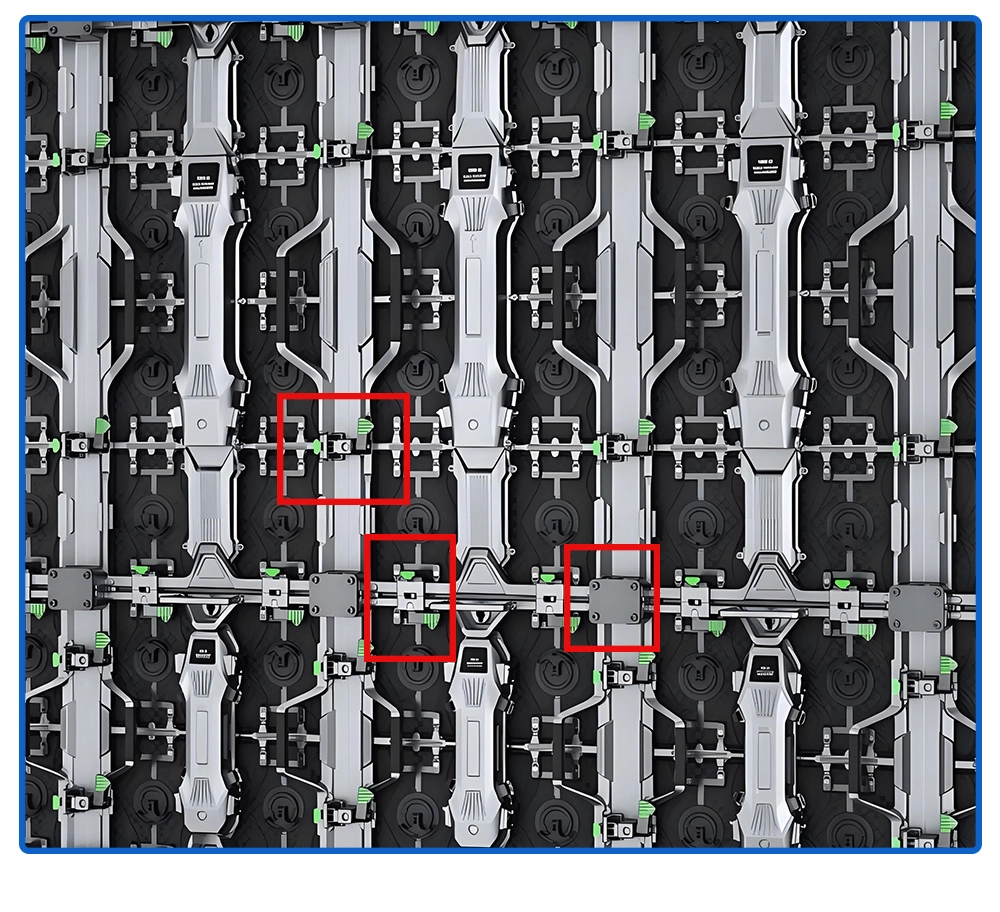

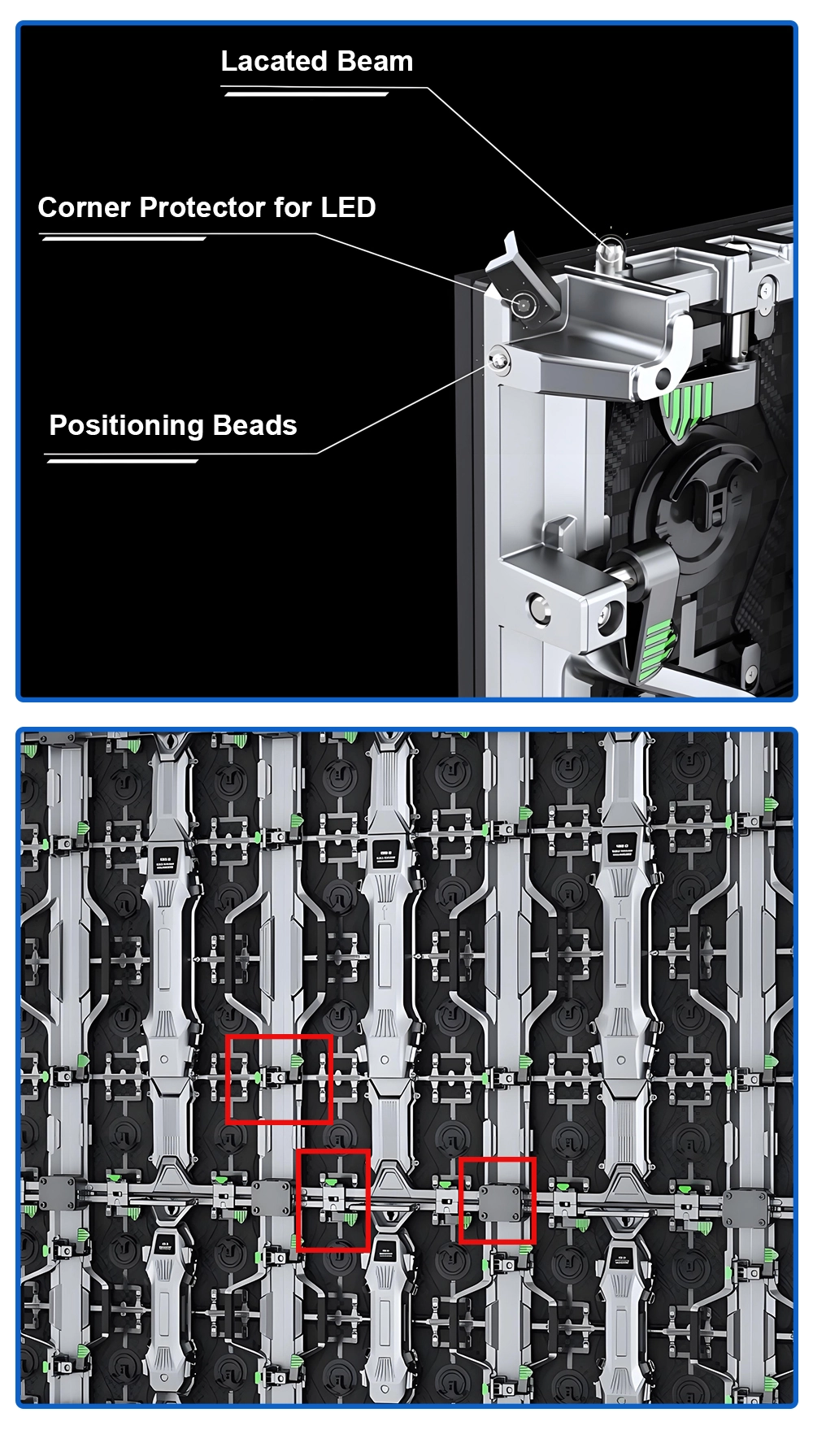

Anti-collision Design & Fast Installation

Indoor&outdoor rental cabinet anti-collision design and fast installation
  • Corner protection protected the modules from collision
  • Small pixels like P1.9 adopt GOB protection
  • Located beam and positioning beads improved the precision of your LED video wall.
  • Left and right fast lock support quick installation and dislocation installation
  • The connection plate makes your video wall safer and more secure.

Strong Compatibility

Our indoor and outdoor usage led display cabinets support seamless interlocking among double-beveled right-angle, 45° angle, flat and curved models.

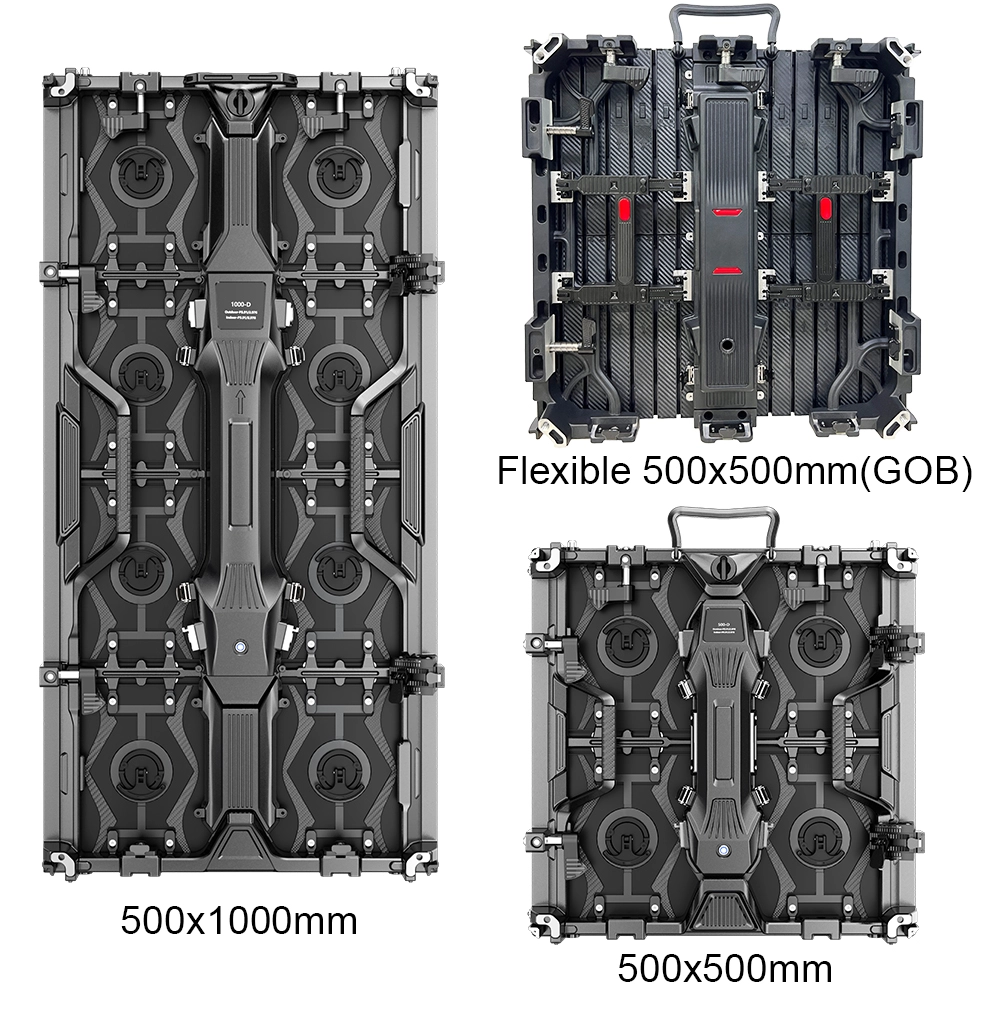

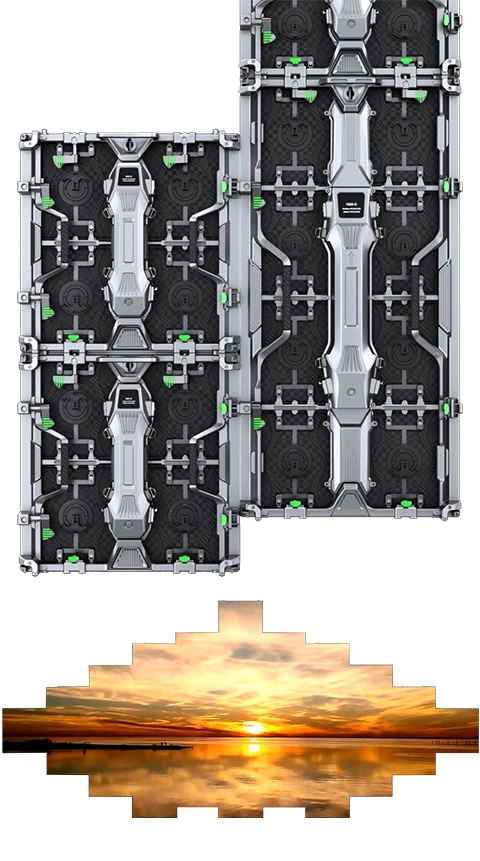

Indoor&outdoor rental cabinet flat cabinet

Flat Cabinet

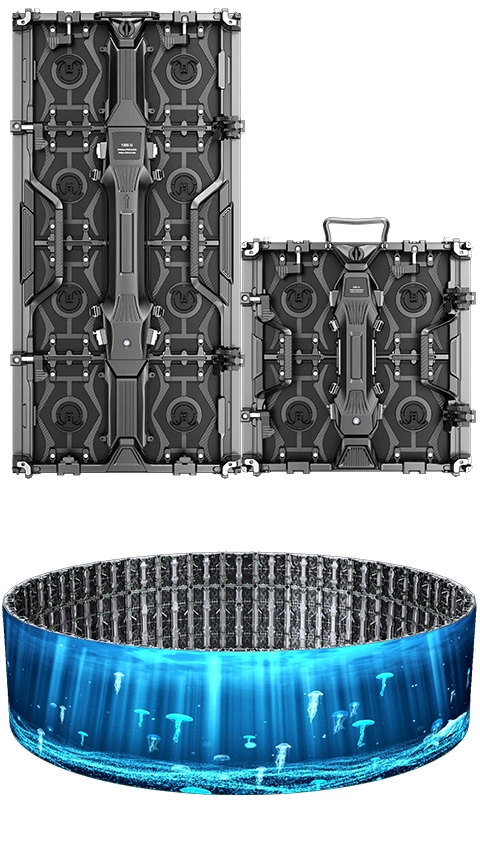

Curved Cabinet

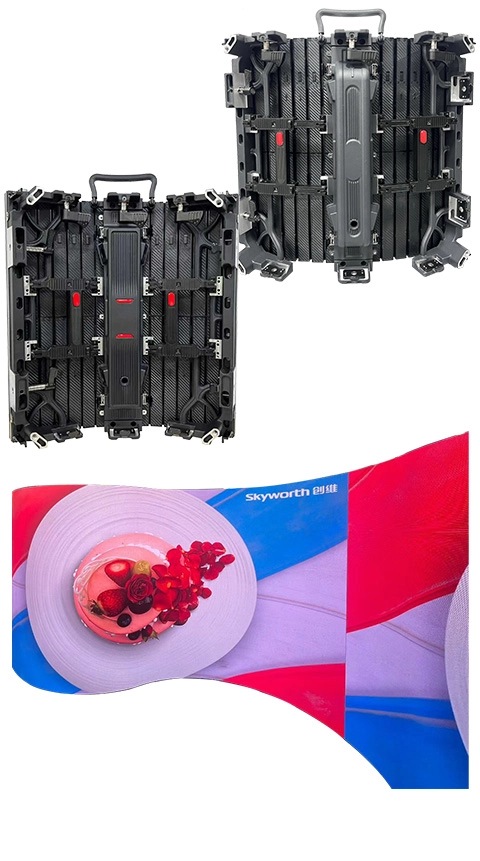

Flexible Cabinet

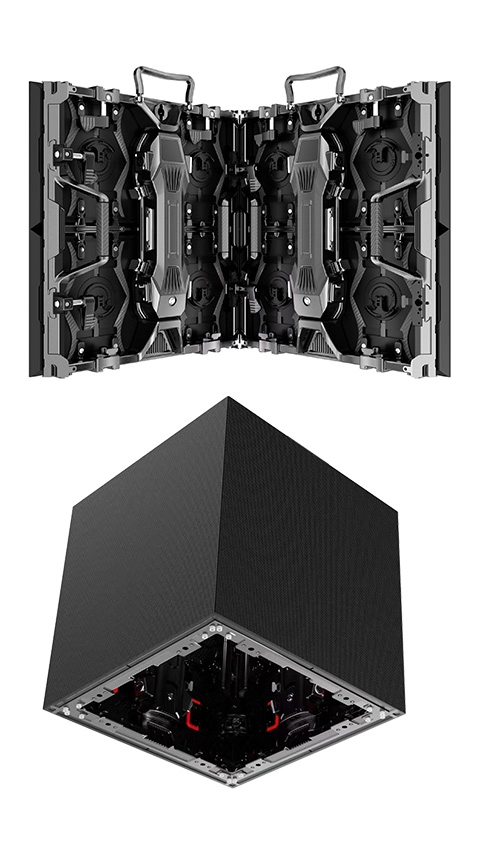

45° angle Cabinet

Installation

Indoor&outdoor rental cabinet hanging installation
Indoor&outdoor rental cabinet stacking installation

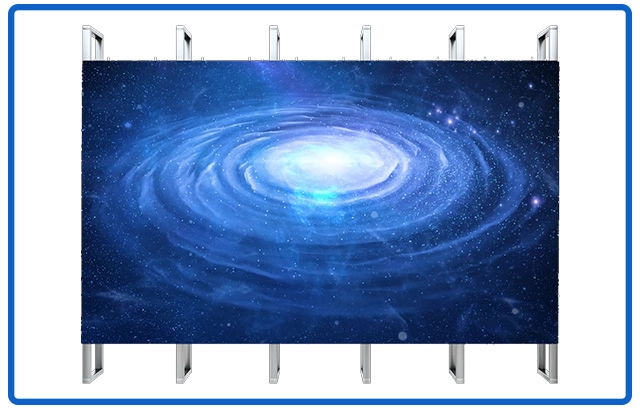

Indoor&outdoor rental cabinet H-shaped Structure installation

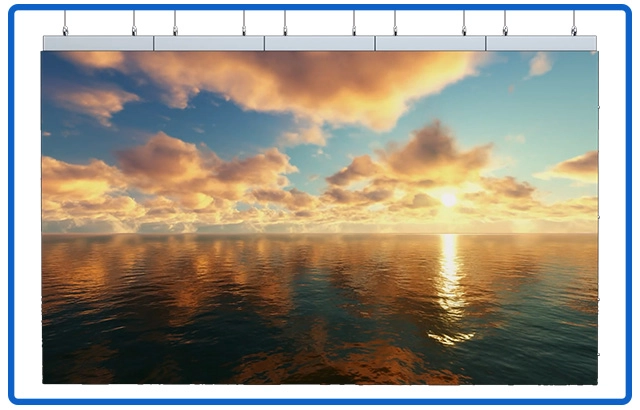

Hanging Installation

Stacking Installation

H-shaped Structure Installation

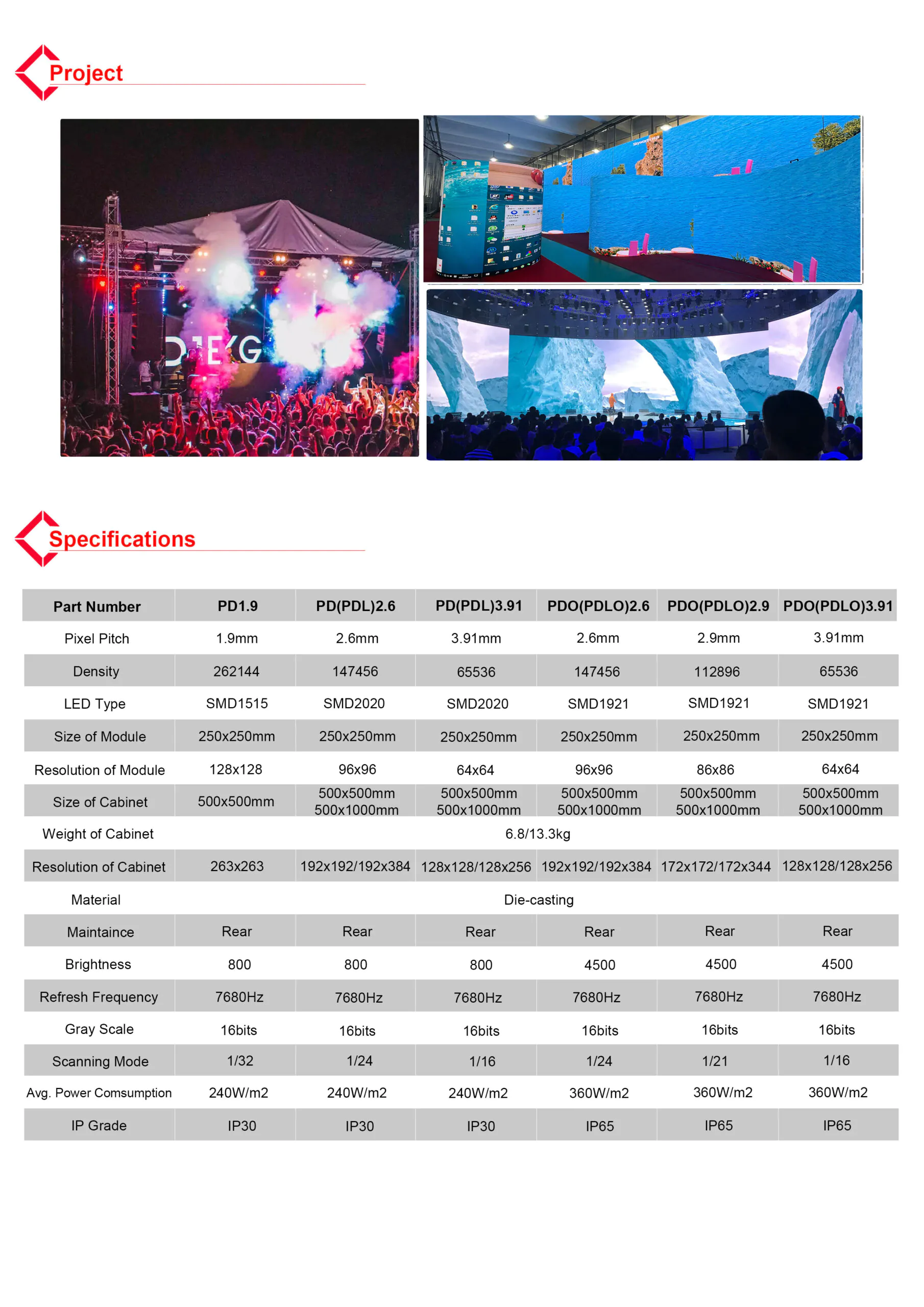

specification for indoor and outdoor led display

Customer Reviews

Related Products

Indoor/Outdoor Rental LED Display PH Series

Read more
Quick view

Indoor/Outdoor Rental LED Display PI Series

Read more
Quick view

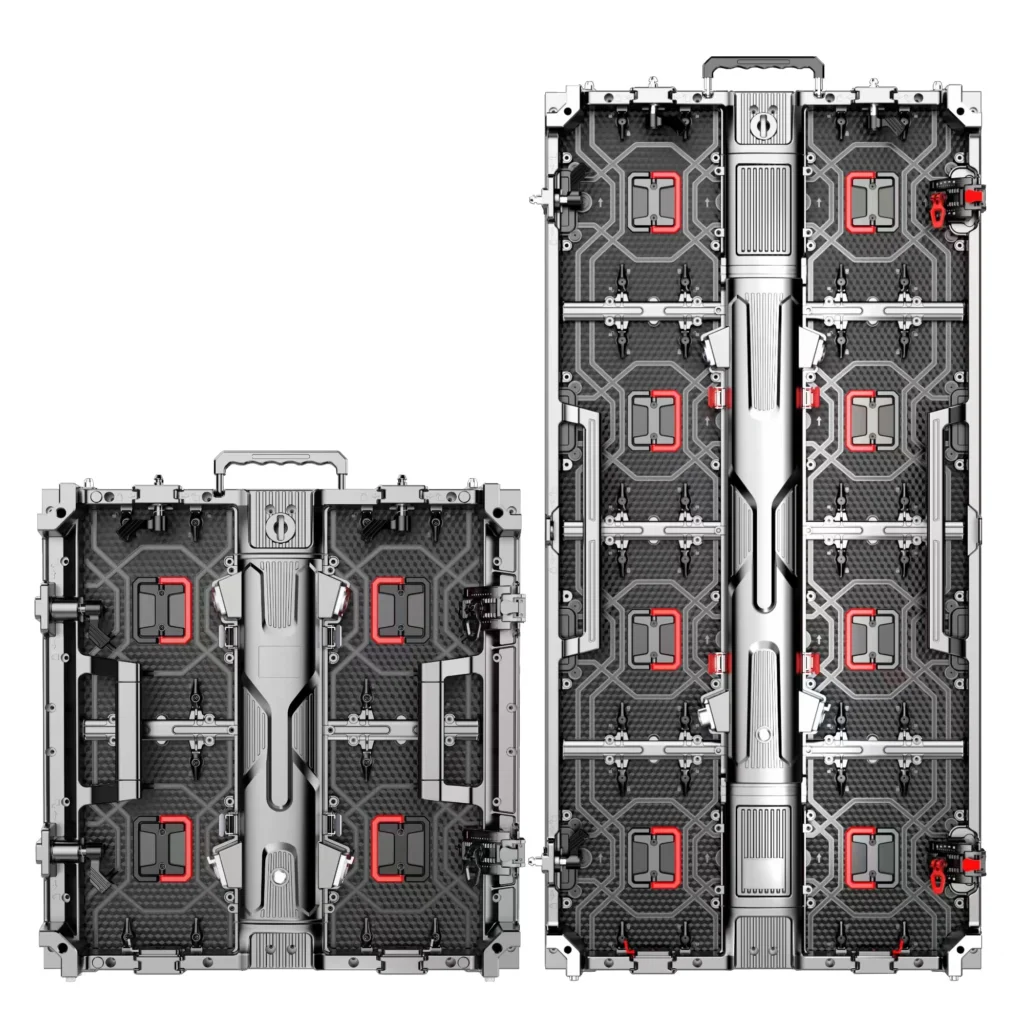

Indoor/Outdoor Rental LED Display PN Series
